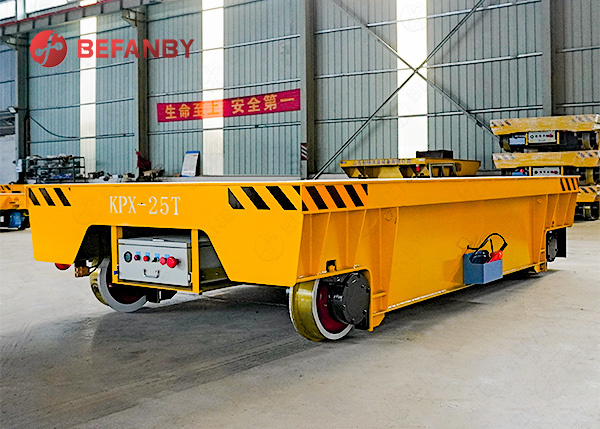

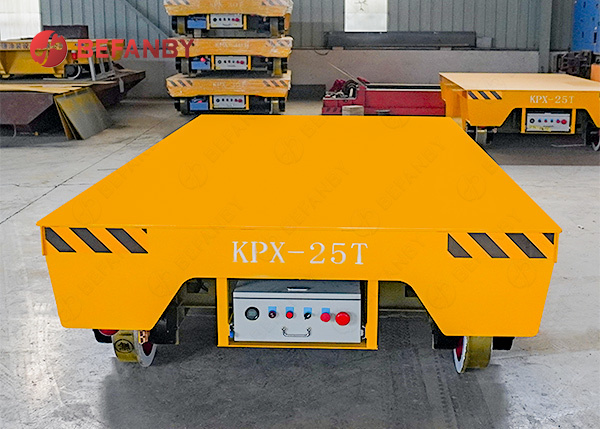

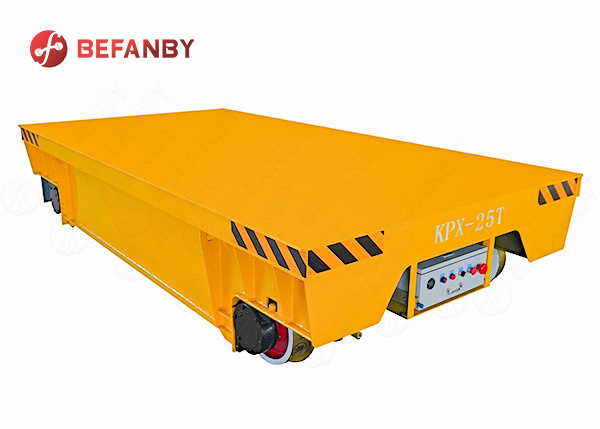

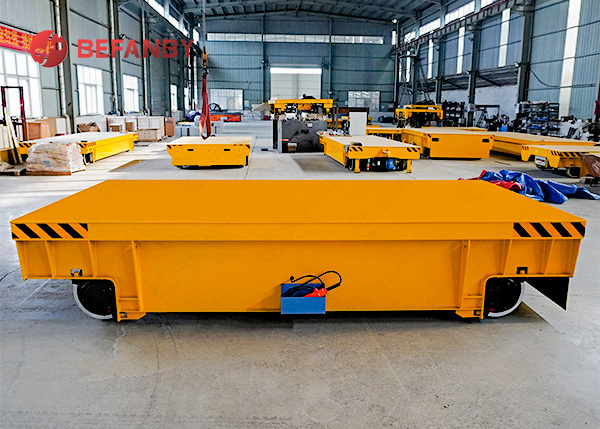

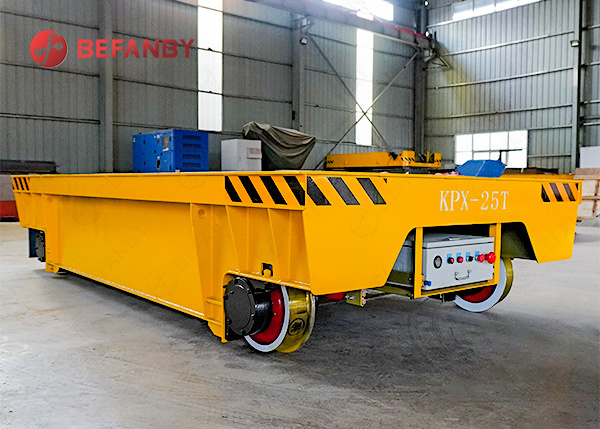

25 Tonne Battery Operated Rail Transfer Cart with High-Strength Steel Construction
| Plaats van herkomst | Henan, China |
|---|---|
| Merknaam | BEFANBY |
| Certificering | CE,SGS,ISO9001 |
| Modelnummer | KPX |
| Min. bestelaantal | 1 Set/sets |
| Prijs | Onderhandelbaar |
| Verpakking Details | Het beweegbare hefplatform wordt verpakt met zeildoek, de onderdelen worden verzonden in een hoogwaa |
| Levertijd | 20-30 dagen zoals gebruikelijk levering |
| Betalingscondities | L/C, T/T, Western Union |
| Levering vermogen | 1500 set/sets, per jaar |
Productdetails
| Nominale belasting | 25 ton | Tafelgrootte | 4500x2200x650 mm |
|---|---|---|---|
| Wieldiameter | Φ400 mm | Loopsnelheid | 20 m/min |
| Motorvermogen | 3 kW | Aantal wielen | 4 stuks |
| Markeren | 25 tonne battery transfer cart,battery rail transfer cart,high-strength steel transfer cart |
||
Productomschrijving
Heavy Load 25 Tonne Rail Transfer Carts
This transfer cart features an upgraded, high-capacity, maintenance-free battery pack that delivers stable and sustained power output. A single full charge provides approximately 8 hours of continuous operation, making it ideal for 24/7 high-intensity transport operations in industrial facilities. The intelligent charging protection system supports rapid recharging, restoring full operational capacity in minimal time to significantly reduce equipment downtime and enhance overall transport efficiency.
Product Details
Technical Specifications
| Model | KPT-2T | KPT-5T | KPT-10T | KPT-16T | KPT-20T | KPT-25T | KPT-30T | KPT-40T | KPT-50T | KPT-63T | KPT-80T | KPT-100T | KPT-150 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Rated load (t) | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 |
| Table Size Length (L) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Width (W) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 |
| Height (H) | 500 | 550 | 550 | 600 | 600 | 650 | 650 | 700 | 700 | 800 | 900 | 1000 | 1200 |
| Wheel Base (mm) | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 |
| Rail Inner Gauge (mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 |
| Wheel Dia. (mm) | Φ270 | Φ300 | Φ300 | Φ350 | Φ350 | Φ400 | Φ400 | Φ500 | Φ500 | Φ600 | Φ600 | Φ600 | Φ600 |
| Wheel Quantity (pcs) | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 |
| Ground Clearance (mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 |
| Running Speed (m/min) | 25 | 25 | 25 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 18 |
| Motor Power (kw) | 0.8 | 1.5 | 1.5 | 2.2 | 2.5 | 3 | 4 | 5.5 | 5.5 | 7.5 | 7.5 | 11 | 15 |
| Running Distance (m) | 25 | 25 | 25 | 25 | 30 | 30 | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
| Max Wheel Load (KN) | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 |
| Reference Weight (t) | 2.5 | 3.5 | 4 | 5.2 | 5.6 | 6.2 | 6.5 | 7.3 | 7.8 | 10.5 | 12.3 | 14.1 | 26.2 |
| Recommend Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | P50 | QU100 | QU100 |
Manufacturer Profile
Key Features
The cart body is constructed from high-strength, thickened steel using a single forging process, creating a robust and stable structure with exceptional load-bearing capacity. It can reliably transport multi-tonnage goods while resisting impact, wear, and deformation. Suitable for various complex industrial environments including high-temperature and heavy-duty operations. The track wheels are manufactured from wear-resistant precision materials, ensuring optimal fit with the track for quiet, smooth movement with low resistance and minimal wear. Long-distance reciprocating travel remains smooth and stable without jamming or deviation, effectively ensuring transport process integrity and preventing material loss from bumps.
Shipping & Delivery
Related Products
Frequently Asked Questions
How can I operate the transfer cart?
We provide comprehensive English user manuals and parts manuals delivered with your equipment. Our documentation ensures easy operation and maintenance.
How do you ensure product quality?
We provide free rail installation drawings, rail foundation construction drawings, and technical guidance. If necessary, our installation engineers will visit your factory to guide the installation process and ensure proper setup.
Do you offer customized transfer carts?
Yes, as manufacturers with our own engineering team, we can create customized designs according to your specific requirements. Please share your needs with us for tailored solutions.
Do you provide professional technical assistance for installation?
Yes, we have a professional installation team with international experience. If you require on-site technical assistance, please inform us in advance so we can arrange our technicians accordingly.
