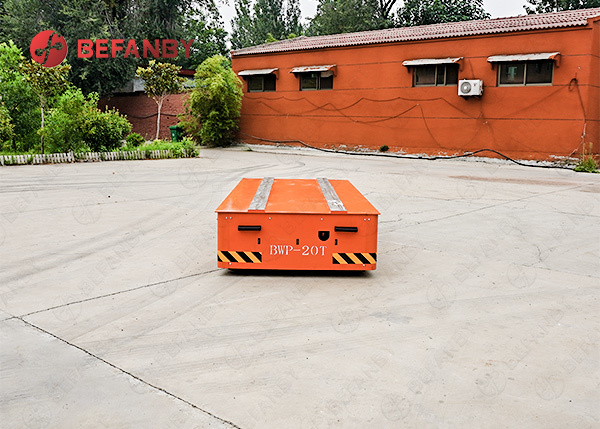

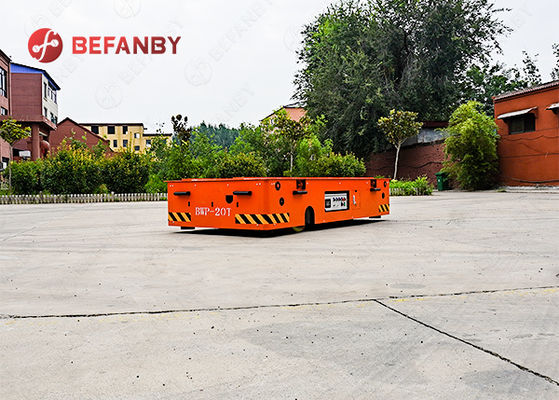

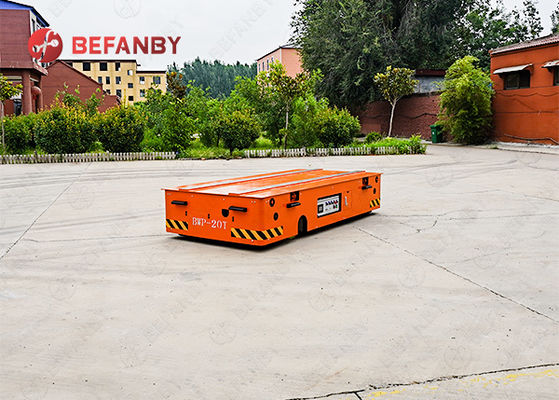

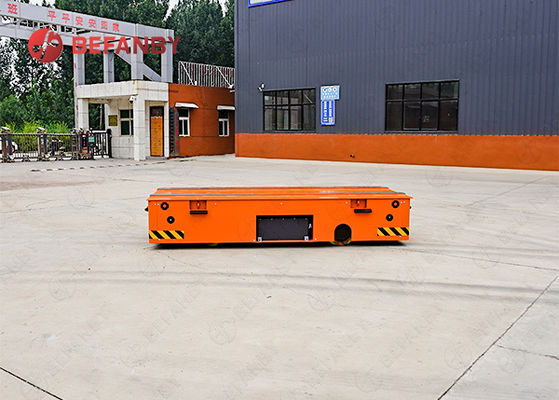

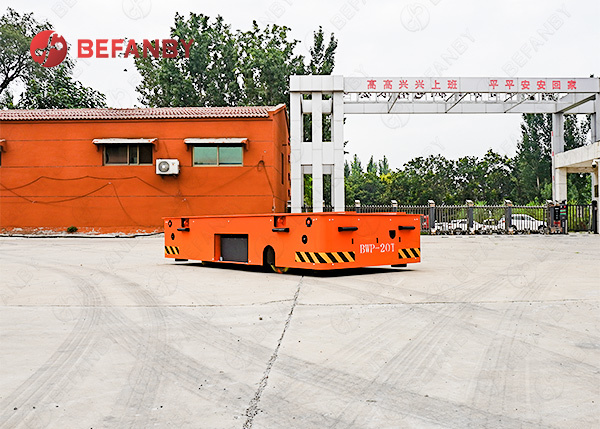

Intelligent Material Handling Solution: Trackless Transfer Cart
| Plaats van herkomst | Henan, China |
|---|---|
| Merknaam | BEFANBY |
| Certificering | CE,SGS,ISO9001 |
| Modelnummer | BWP |
| Min. bestelaantal | 1 set/sets |
| Prijs | Onderhandelbaar |
| Verpakking Details | De overdrachtskar wordt verpakt door het TARP, de onderdelen worden verpakt door de hoogwaardige hou |
| Levertijd | 20-30 dagen zoals gebruikelijk levering |
| Betalingscondities | L/C, T/T, Western Union |
| Levering vermogen | 1500 set/sets, per jaar |
Contacteer me voor vrije steekproeven en coupons.
whatsapp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.
xProductdetails
| Kleur | Aangepast | Garantie | 24 maanden |
|---|---|---|---|
| Laadvermogen | Aangepast | Voeding | Werkt op batterijen |
| Haven | Qingdao/Tianjin/Shanghai | Applicatie | Fabriek, workshop, bouwconstructie, schoonmaakvenster |
| Materialen | Staal |
Productomschrijving
Intelligent Material Handling Solution: Trackless Transfer Cart
Product Description
The trackless transfer cart features a high-strength steel plate welded structure (steel profile splicing type), offering excellent overall rigidity and load-bearing capacity. The cart body mainly consists of the following parts:
Frame Structure: Utilizing a high-quality welded steel frame, it boasts strong anti-deformation capabilities and can bear loads ranging from 5 to over 100 tons.
Drive System: Equipped with a high-performance DC motor and reducer combination, and cast steel wheels with strong traction, ensuring smooth operation.
Steering System: Employing multi-wheel independent drive or optional omnidirectional Mecanum wheel design, it enables various driving modes including forward, backward, lateral movement, and stationary rotation.
Power System: Depending on requirements, it can be powered by rechargeable batteries or lithium batteries, supporting long-term continuous operation.
Control System: Equipped with wireless remote control and automatic navigation control, it allows for manual/automatic dual-mode switching; some models support laser navigation or magnetic strip navigation.
Safety System: Features audible and visual alarms, obstacle avoidance radar, and emergency stop buttons to ensure safe and reliable operation.
Product Details
Product Parameter
| Product Name | Model No. | Power Supply Mode | Load Capacity | Other Items | Usage |
| Rail Transfer Cart | KPD | Conductor Rail | Load range 1-300ton, can be customized per client demand | Running distance | Ordinary goods,such as steel plate, workpiece,equipment etc special goods,such as coil. column,ladle etc |
| Battery Powered Transfer Car | KPX | Battery | Using frequency | ||
| Motorized Transfer Trolley | KPJ | Cable Drum | Running distance | ||
| Busbar Powered Handling Cart | KPC | Busbar | Working shop | ||
| Towed Rail Trailer | KP | Tractor | 1-100t | Working shop | |
| Steerable Towed Car | BWT | Tractor | Load range 1-50t, less than 20t, cement floor is ok. More than 20t,steel floor is demanded. | Working environment | |
| Trackless Handling Machine | BWP | Battery | Working path |
Product Feature
No Track Required:Can be used directly on hard, smooth surfaces in the factory area, saving track construction costs and improving work efficiency.
High Operational Flexibility:Capable of multi-directional movement and in-situ rotation, easily adapting to narrow spaces or complex routes.
High Load Capacity:Sturdy vehicle structure, customizable to 5-ton, 10-ton, 30-ton, or even 100-ton load capacities.
High Level of Intelligence:Supports remote control, automatic stop upon human detection, automatic charging, route planning, and other intelligent functions.
Safe and Reliable:Equipped with multiple protection systems, ensuring smooth operation and low noise, suitable for various indoor and outdoor working environments.
Easy Maintenance:Simple structure, modular drive and control design, convenient maintenance, and long service life.
Applications
Company Profile
Related Products
FAQ
1) Q: How can I operate the transfer cart ?
A: Please don't worry, dear friend. The English user manual, parts manual will be delivered with your items together.
2) Q: How to ensure your product quality ?
A : We will free provide rail installation drawing, rail foundation construction drawing, free technical guide. And if necessary,our installation engineer will go to your factory to guide the installation.
3)Q: Whether you can offer customized transfer car?
A: Yep, of course, we are manufacturer, and we have our own engineer group. They can work out customized design according to your requirement. The most important thing is that you tell us what you need.
4)Q: Whether there is professional technician assist our installation?
A :Yep. We have professional installation team, who have gone to many countries to assist the installation. If you need we send technician to your factory, please let us know in advance. So that we can arrange technicians.
