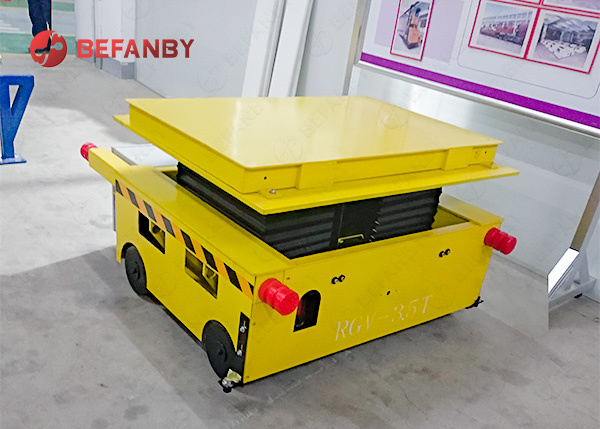

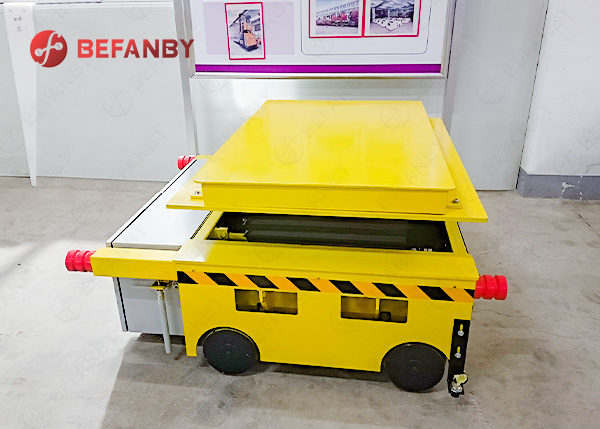

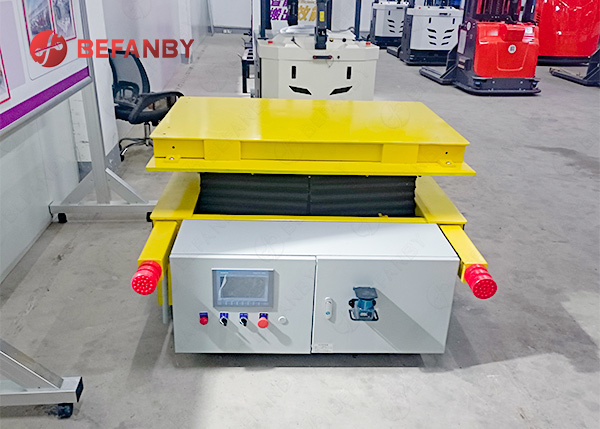

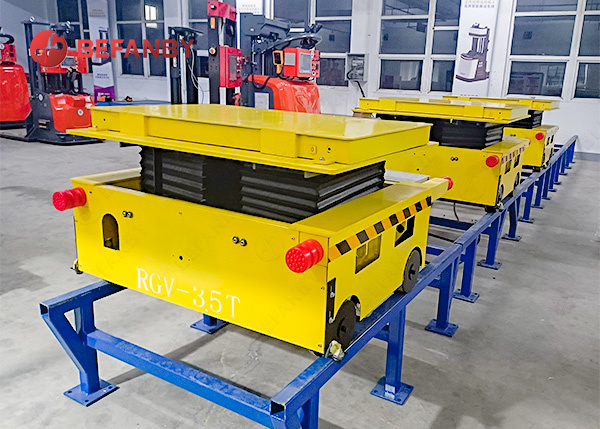

3 Ton Capacity Battery RGV Transfer Cart With Lift Control
| Plaats van herkomst | Henan, China |
|---|---|
| Merknaam | BEFANBY |
| Certificering | CE,SGS,ISO9001 |
| Modelnummer | rgv |
| Min. bestelaantal | 1 Set/sets |
| Prijs | Onderhandelbaar |
| Verpakking Details | De gemotoriseerde plaat trolley zal worden verpakt door het zeil, de onderdelen zullen worden verzon |
| Levertijd | 20-30 dagen zoals gebruikelijk levering |
| Betalingscondities | L/C, T/T, Western Union |
| Levering vermogen | 1500 set/sets, per jaar |
Contacteer me voor vrije steekproeven en coupons.
whatsapp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.
xProductdetails
| Kleur | Aangepast | Garantie | 24 maanden |
|---|---|---|---|
| Laadvermogen | Aangepast | Voeding | Werkt op batterijen |
| Haven | Qingdao/Tianjin/Shanghai | Sollicitatie | Zware industrie, buiten, constructie |
| Materialen | Staal |
Productomschrijving
Box Girder Structure Material Transfer Cart - Battery Operated
The RGV intelligent rail transfer cart is a high-efficiency material handling device designed for the logistics and transportation needs of semi-automated factories. This model integrates intelligent operation, rail guidance, and lifting functions, enabling stable operation on predetermined tracks and precise material transport between different workstations. Equipped with a lifting device, the vehicle offers stable and controllable lifting height, allowing for flexible docking with production lines, equipment, or tooling of varying heights, effectively reducing manual intervention and improving overall operational efficiency.
Product Details
Our Manufacturing Facility
Customized Engineering Solutions
Product Specifications
| Model | KPX-10t | KPX-16t | KPX-25t | KPX-30t | KPX-40t | KPX-50t | KPX-63t | KPX-80t | KPX-100t | KPX-150t |
|---|---|---|---|---|---|---|---|---|---|---|
| Rated Load (t) | 10 | 16 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 |
| Table Length L (mm) | 3600 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Table Width W (mm) | 2000 | 2000 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 |
| Table Height H (mm) | 500 | 550 | 600 | 600 | 650 | 650 | 700 | 800 | 900 | 1200 |
| Wheel Base (mm) | 2600 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 |
| Rail Inner Gauge (mm) | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 |
| Wheel Diameter (mm) | 300 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 |
| Ground Clearance (mm) | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 |
| Running Speed (m/min) | 25 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 18 |
| Motor Power (kW) | 2 | 2.2 | 3.5 | 4 | 5 | 6.3 | 8 | 10 | 15 | 15 |
| Battery Capacity (Ah) | 160 | 180 | 250 | 250 | 300 | 330 | 400 | 400 | 440 | 600 |
| Battery Voltage (V) | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 72 | 72 | 72 |
| Max Wheel Load (kN) | 42.6 | 64.5 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 |
| Reference Weight (t) | 4.2 | 5.5 | 6.5 | 6.8 | 7.6 | 8 | 10.8 | 12.8 | 14.6 | 26.8 |
Key Features
- Load Capacity: With a load capacity of 30 tons, it can transport heavy materials and equipment, meeting various heavy-duty transportation needs.
- Operating Range: Powered by a battery, its operating range is unlimited, allowing for efficient transportation across large work areas.
- Operation Modes: Offers multiple operation modes, which can be customized as needed, such as remote control, manual operation, or automated operation.
Production Process
Related Products
Frequently Asked Questions
How can I operate the transfer cart?
The English user manual and parts manual will be delivered with your items together for easy operation.
How to ensure your product quality?
We provide rail installation drawings, rail foundation construction drawings, and free technical guidance. If necessary, our installation engineer will visit your factory to guide the installation process.
Whether you can offer customized transfer cart?
Yes, we are a manufacturer with our own engineering team. They can create customized designs according to your requirements. Please inform us of your specific needs.
Whether there is professional technician assist our installation?
Yes. We have a professional installation team with international experience. If you require technical assistance at your factory, please inform us in advance for proper arrangement.
